PRISM PRO - IR (infrared refractometer)The perfect blend of innovative design and state of the art technology

  • M3 Measurment Solutions - Prism Pro - IR
  • M3 Measurment Solutions - Prism Pro - IR
  • M3 Measurment Solutions - Prism Pro - IR
  • M3 Measurment Solutions - Prism Pro - IR

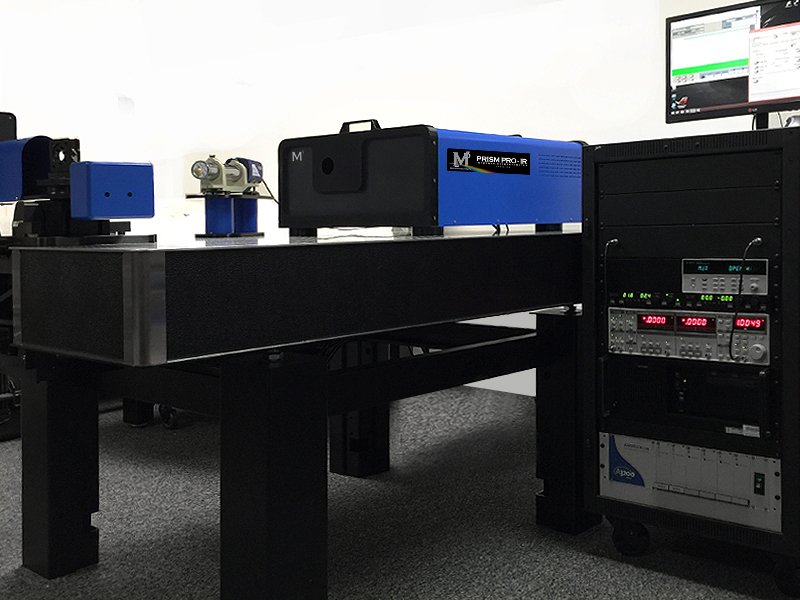

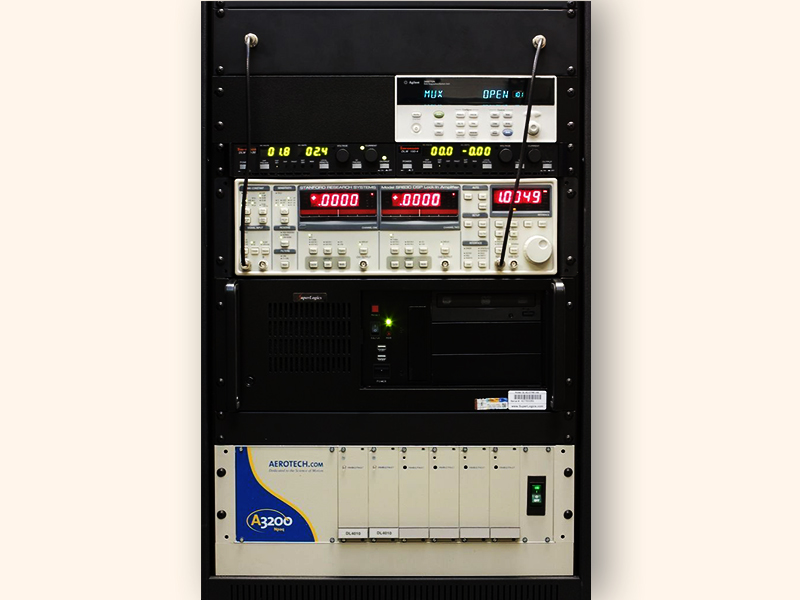

PRISM PRO - IR refractometer


The Prism Pro - IR is a state of the art Infrared Refractometer. It is the ideal instrument for characterizing infrared material properties of dispersion and refractive index.


  SYSTEM SPECS

 SPECIFICATION  DESIGN VALUE
*Refractive Index Accuracy +- 0.00005
*Refractive Index Repeatability +- 0.00002
Wavelength Range  1um to 14um
Wavelength Accuracy +- 0.05%
Wavelength Programmability <1nm
Instrument Test Aperture 25 mm Diameter
Rotary Stage Resolution (both) .008 arc sec
Dual RTD (Resistive Thermal Devices) +-0.3 Deg C
Detector MCT
DSP Lock-In Amplifier SRS 830
SOURCE/ MONOCHROMATER  SPECIFICATIONS
Source Type

150 W Quartz-Halogen Lamp
(0.25 - 3.5 um)
Ceramic Glower (2.0 - 30 um)

Automated Tri-Grating Turret Mount

--

Automated 11-Position Second
Order Blocking Filter Wheel

 --

Variable Speed Optical Chopper (10 – 350Hz)

--

(6) Sets of User Interchangeable Slits

--
MAIN FRAME
Envelope Dimensions (LWH)

6ft x 4ft x 3ft

Electrical Requirements           120 VAC, 60 Hz
Laser Safety

CDRH Class IIIb Laser Product
IEC Class 3B

Weight 1100lbs (with table)
SOFTWARE: Analysis Software M3 Automated Refrative Index Package
  *Accuracy and Repeatability are verified with a 60 deg CaF2 prism @3.39um
  • Sample Flatness
  • Apex Angle
  • Ambient Temperature Control in Lab
  • dn/dT of the sample
  • Transmission (signal to noise)
  • Dispersion of the sample
